New PX30-Based LCD Module Combines Cost-Effectiveness with High Performance

HY10600X070 is an industrial-grade Android LCD module based on Rockchip PX30 processor.

Compared with our consuming grade products, this new product is more powerful in performance, suitable for medium and high-end applications with higher performance requirements.





In terms of hardware, this product is equipped with capacitive touch solution, TFT colour LCD, optional 1GB/2GB DDR3, 8GB eMMC.

The standard product of this LCD screen module is equipped with COMx4/USBx2 interfaces, etc., which brings you an excellent and stable experience of the product with industrial-grade parameter performance.



Advantages



1.Powerful Performance

A. Excellent GPU

Featuring a quad-core ARM Cortex-A35 architecture running at up to 1.5 GHz per core, this processing power enables simultaneous multi-tasking and multi-threaded workloads.

B. Nice GPU

Equipped with Mali-G31 GPU supporting OpenGL ES 3.2 and Vulkan 1.1, PX30 delivers superior graphics performance for high-quality graphics rendering and advanced applications.

Supports 1080P video encoding, H.265 hard decoding. Multiple video outputs.



C. Low Power Consumption

Designed for low power consumption, the core board incorporates 22nm process technology to ensure battery life during high performance computing for portable devices and mobile terminals.

2.Rich Interfaces

With all of PX30’s advantages, the product supports a variety of peripheral expansion, and we provide hardware customization if you have special demands for design of the interfaces.

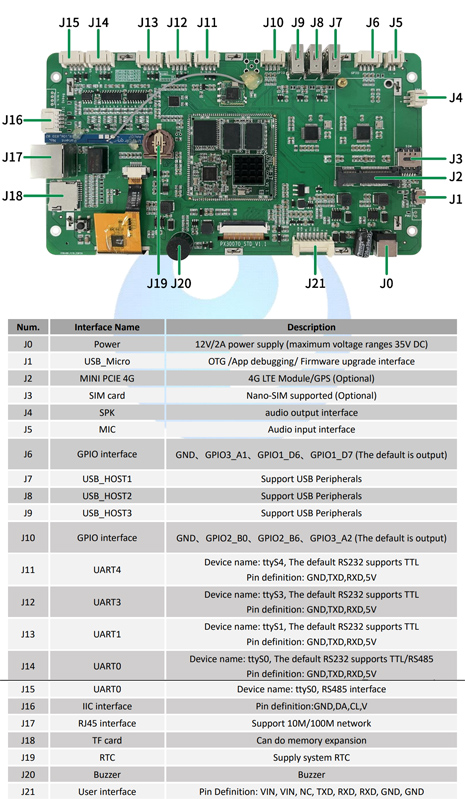

As you can see from the table above, the interfaces are rich, including Ethernet interfaces supporting 10M/100M network, 3*RS232/TTL,1*RS232/TTL/RS485, 3*USB Host and many other ones. What’s more, the module supports 802.11b/g/n Wi-Fi wireless network; Bluetooth 5.0 ,4G LTE Module on board and GPS is optional.

3.High-end applications

Due to its strong performance and efficient secondary development capability, the product of Proculos provides industrial application scenarios with strong performance, stable and reliable, scalable product support, which can be widely applied to IoT devices, in-vehicle central control, entertainment and gaming equipment, commercial display equipment, intelligent security, intelligent industrial control, smart home and other fields.





NEWS

The new product has been launched already, and it will be displayed at Embedded World 2024.

• Where: Exhibition Centre Nuremberg Germany

• Opening times:

Tuesday, 9.4.2024: 09:00 – 18:00

Wednesday, 10.4.2024: 09:00 – 18:00

Thursday, 11.4.2024: 09:00 – 17:00

• l Our Booth:1-259

If you want more information of our products, or visit us at the exhibition, please contact us at: contact@proculustech.com.
