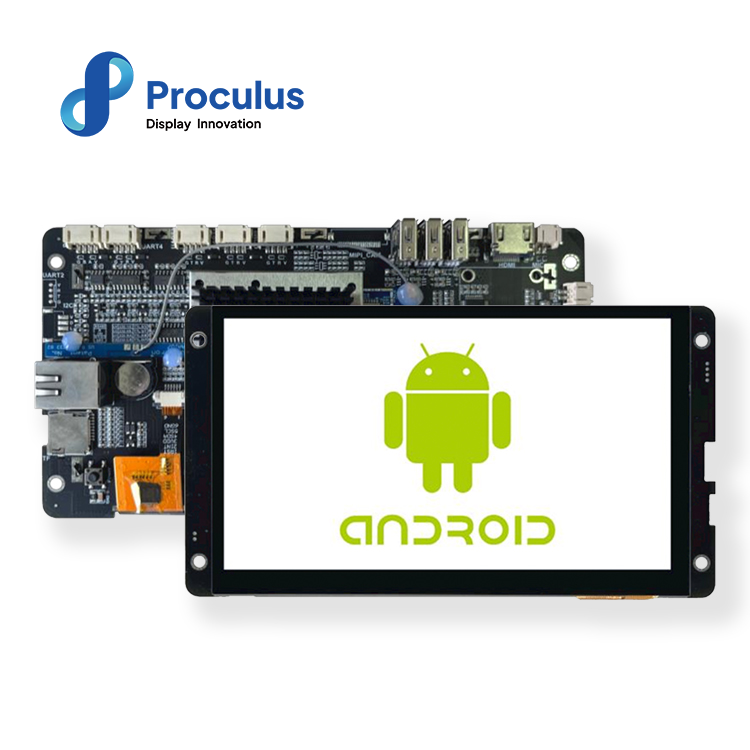

P10600HY070P_T01 is an industrial level Android LCM based on Rockchip RK3288 ARM. It is equipped with Quad-core Coretex-A17, supports most decoding solutions under 1080p@60fps, H.265/H.264/MVC/VP8 solutions under 1080p@60fps and many other great features of Rockchip RK3288. Meanwhile, with good jpeg picture processing performance and 3D GPU, it supports OpenGL ES2.0 and 1.1 OpenVG1.1.

RK3288 has high-performance external memory interface (DDR3/DDR3L/LPDDR2) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

Specifications of 7.0 Inch 1024*600 Android LCM

  Core Board
CPU 1.8GHz Quad-core A17 ARM
RAM 2GB DDR3
eMMC 8GB
GPU Mali-T764 MP4
Power Management ACT8846 PMU
  System Version
Android Android 5.1/7.1/8.1
Ubuntu Ubuntu 18.04 (Default system is Android. Need to refresh firmware to choose Ubuntu. Apps need to be developed separately.)
  Display
Color 16.7M (16777216) colors, 24-bit color 8R8G8B.
Active Area (A.A.) 154.08 mm(W)×85.92 mm(H), 1024×600.
View Area (V.A.) 155.96 mm(W)×88.87mm(H), 1024×600.
Resolution 1024×600
Backlight LED
Brightness 350/500/1000
  Optical Specifications
Item Symbol Condition Min. Typ. Max. Unit
Viewing Angle (CR≧10) θL Φ=180° (9 o’clock) 70 80 — Degree
θR Φ=0° (3 o’clock) 70 80 —
θT Φ=90° (12 o’clock) 50 60 —
θB Φ=270° (6 o’clock) 60 70 —
  Voltage & Current
Item Condition Min. Typ. Max. Unit
Power Voltage 6 12 16 V
Operation Current — — 800 — mA
Power Supply 12V 2A DC (Recommended).
  Reliability Test
Item Condition Min. Typ. Max. Unit
Working Temperature 60%RH at 12V voltage -20 25 70 ℃
Storage Temperature — -30 25 85 ℃
Working Humidity 25℃ 10% 60% 90% RH
Protection Paint — — None — —
  Interface
Item Condition Min. Typ. Max. Unit
Baud Rate Standard 1200 9600 115200 bps
User Defin 1200 — 115200 bps
Serial Mode Serial Port*4 (3*RS232/TTL, 1*RS232/TTL/RS485).
User Interface Standard serial communication protocol. 8Pin_2.0mm socket.
USB USB DEBUG*1. USB HOST*3.
Ethernet Support 10m/100m/1000m Ethernet.
Wi-Fi/Bluetooth Support 802.11b/g/n Wi-Fi wireless network. Bluetooth is Optional.
4G LTE Module 4G LTE Module/GPS. (Optional)
  Peripherals
Microphone Audio input interface.
Loudspeaker 2-channel, 4Ω/3W loudspeaker.
HDMI HDMI output interface.
IIC Reserved
TF card Yes
LVDS Reserved

Interface Description of 7.0 Inch 1024*600 Android LCM




Num. Interface Name Description
J0 Power 12V/2A power supply (maximum voltage ranges from 6V to 16V DC)
J1 Wake-up Control screen system on/off
J2 USB_Micro OTG /App debugging/ Firmware upgrade interface
J3 MINI PCIE 4G 4G LTE Module/GPS (Optional)
J4 SIM card Nano-SIM supported (Optional)
J5 LVDS interface Reserved
J6 SPK_R Right channel audio output interface
J7 SPK_L Left channel audio output interface
J8 MIC Audio input interface
J9 HDMI HDMI output interface
J10 USB_HOST3 Support USB Peripherals
J11 USB_HOST2 Support USB Peripherals
J12 USB_HOST1 Support USB Peripherals/Support dual USB parallel use
J13 MIPI camera interface Reserved
J14 COM0 Device name: COM0. Pin definition: 5V, RXD, TXD, GND
J15 UART1 Device name: ttyS1. Pin definition: 5V, RXD, TXD, GND
J16 UART3 Device name: ttyS3. Pin definition: 5V, RXD, TXD, GND
J17 UART4 Device name: ttyS4. Pin definition: 5V, RXD, TXD, GND/Same as J18 ( J17 and J18 are mutually exclusive)
J18 RS485 Device name: ttyS4. Pin definition: 5V, RXD, TXD, GND/Same as J17 (J17 and J18 are mutually exclusive)
J19 Debug interface not open temporarily
J20 IIC communication Pin definition: 5V, SDA, SCL, GND (Reserved)
J21 RJ45 interface Support 10M/100M/1000M network
J22 TF card Can do memory expansion
J23 Wake-up Control screen system on/off
J24 RTC Supply system RTC
J25 Buzzer Buzzer
J26 Radiator interface Reserved
J27 User interface Pin Definition: 12V, 12V, NC, TXD, RXD, RXD, GND, GND
