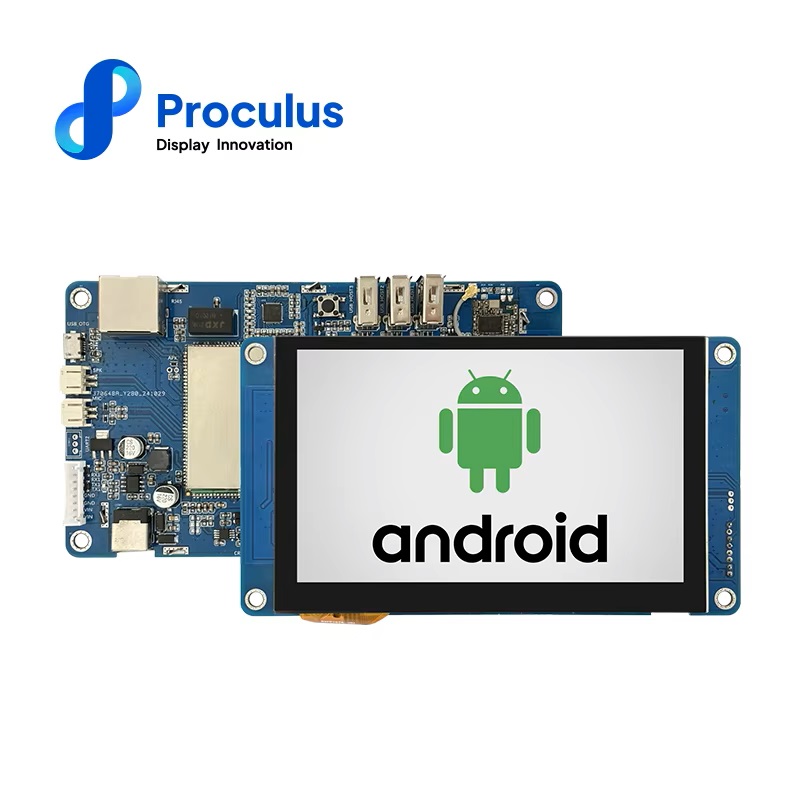

P80480HY050X_T01 is an industrial level Android LCM based on Rockchip PX30 ARM. It is equipped with Quad-core Cortex-A35, supports most decoding solutions under Integrated Mali G31 GPU, support 1080P video encoding, H.265 hard decoding. and many other great features of Rockchip PX30.


PX30 has high-performance external memory interface (DDR3/LPDDR2/LVDDR3) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.


Specifications of 5 Inch Android LCD module

  Core Board
Item Parameter
CPU 1.5GHz Quad-core A35 ARM
RAM 1GB/2GB DDR3
eMMC Default 8GB, Support 16/32/64GB
GPU Mali G31
Power Management RK809
  System Version
Item Parameter
Android Android 8.1/11
Ubuntu Support Ubuntu16.04 or linux+QT5.12
  Display
Item Parameter
Color 16.7M (16777216) colors, 24-bit color 8R8G8B.
Active Area (A.A.) 108.0 mm(W)×64.8 mm(H), 800*480.
View Area (V.A.) 110.4 mm(W)×67.1 mm(H), 800*480.
Resolution 800*480
Backlight LED
Brightness 300nit
  Optical Specifications
Item Symbol Condition Values Unit
Min. Typ. Max.
Viewing Angle (CR≧10)   θL Φ=180° (9 o’clock) – 70 – Degree
θR Φ=0° (3 o’clock) – 70 –
θT Φ=90° (12 o’clock) – 50 –
θB Φ=270° (6 o’clock) – 70 –
  Voltage & Current
Item Condition Min Typ. Max Unit
Power Voltage 12 12 24 V
Operation Current – – 500 – mA
Power Supply 12V 2A DC (Recommended)
  Reliability Test
Item Condition Min Typ. Max Unit
Working Temperature 60%RH at 12V voltage -20 25 70 ℃
Storage Temperature – -30 25 85 ℃
Working Humidity 25℃ 10% 60% 90% RH
Protection Paint – – None – –
  Interface
Item Condition Min Typ. Max Unit
Baud rate Standard – 9600 – bps
User Defin 1200 – 115200 bps
Serial Mode Serial Port*2 (1*RS232/TTL, 1*RS232/TTL/RS485)
User Interface Standard serial communication protocol. 8Pin_2.0mm socket.
USB USB DEBUG*1. USB HOST*3.
Ethernet Support 10m/100m Ethernet.
Wi-Fi Support 802.11b/g/n Wi-Fi wireless network.
4G LTE Module –


Interface Description of 5 Inch 800*480 Android LCD Module

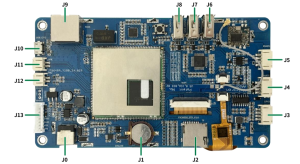

Num. Interface Name Description
J0 Power 12V/2A power supply (maximum voltage ranges from 12V to 24V DC)
J1 RTC Supply system RTC
J2 TF card Can do memory expansion
J3 GPIO interface Pin definition: GND、GPIO1_B6、GPIO1_B7、GPIO1_B5
J4 UART0 Device name: ttyS0. Pin definition: GND、TX、RX、5V
J5 RS485 Device name: ttyS0. Pin definition: GND、B、A、5V /Same as J4
J6 USB_HOST1 Support USB Peripherals
J7 USB_HOST2 Support USB Peripherals
J8 USB_HOST3 Support USB Peripherals
J9 RJ45 interface Support 10M/100M network
J10 USB_Micro OTG /App debugging / Firmware upgrade interface
J11 SPK Audio output interface
J12 MIC Audio input interface
J13 User interface Pin Definition:RX1、RX1、TX1、TX1、 GND、GND、VIN、VIN
