P12800HY101P_T01

P12800HY101P_T01 is an industrial level Android LCM based on Rockchip RK3288 ARM. It is equipped with Quad-core Coretex-A17, supports most decoding solutions under 1080p@60fps, H.265/H.264/MVC/VP8 solutions under 1080p@60fps and many other great features of Rockchip RK3288. Meanwhile, with good jpeg picture processing performance and 3D GPU, it supports OpenGL ES2.0 and 1.1 OpenVG1.1.

RK3288 has high-performance external memory interface (DDR3/DDR3L/LPDDR2) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

Specifications of 10.1 Inch 1280*800 Android LCM

  Core Board
CPU 1.8GHz Quad-core A17 ARM
RAM 2GB DDR3
eMMC 8GB
GPU Mali-T764 MP4
Power Management ACT8846 PMU
  System Version
Android Android 5.1/7.1/8.1
Ubuntu Ubuntu 18.04 (Default system is Android. Need to refresh firmware to choose Ubuntu. Apps need to be developed separately.)
  Display
Color 16.7M (16777216) colors, 24-bit color 8R8G8B.
Active Area (A.A.) 216.96 mm(W)×135.60 mm(H), 1280×800.
View Area (V.A.) 219.46 mm(W)×138.10mm(H), 1280×800.
Resolution 1280×800
Backlight LED
Brightness 300nit
  Optical Specifications
Item Symbol Condition Min. Typ. Max. Unit
Viewing Angle (CR≧10) θL Φ=180° (9 o’clock) 75 85 — Degree
θR Φ=0° (3 o’clock) 75 85 —
θT Φ=90° (12 o’clock) 75 85 —
θB Φ=270° (6 o’clock) 75 85 —
  Voltage & Current
Item Condition Min. Typ. Max. Unit
Power Voltage 6 12 16 V
Operation Current — — 400 — mA
Power Supply 12V 3A DC (Recommended).
  Reliability Test
Item Condition Min. Typ. Max. Unit
Working Temperature 60%RH at 12V voltage -20 25 70 ℃
Storage Temperature — -30 25 85 ℃
Working Humidity 25℃ 10% 60% 90% RH
Protection Paint — — None — —
  Interface
Serial Mode Serial Port*4 (3*RS232/TTL, 1* RS232/TTL/RS485).
User Interface Standard serial communication protocol. 4Pin_2.54mm/8Pin_2.54mm socket.
USB USB DEBUG*1. USB HOST*4.
Ethernet Support 10m/100m/1000m Ethernet.
Wi-Fi/Bluetooth Support 802.11b/g/n Wi-Fi wireless network; Bluetooth is optional.
4G LTE Module 4G LTE Module/GPS. (Optional)
  Peripherals
Microphone Audio input interface.
Loudspeaker 4Ω/3W loudspeaker.
HDMI HDMI output interface.
IIC Reserved
TF card Yes

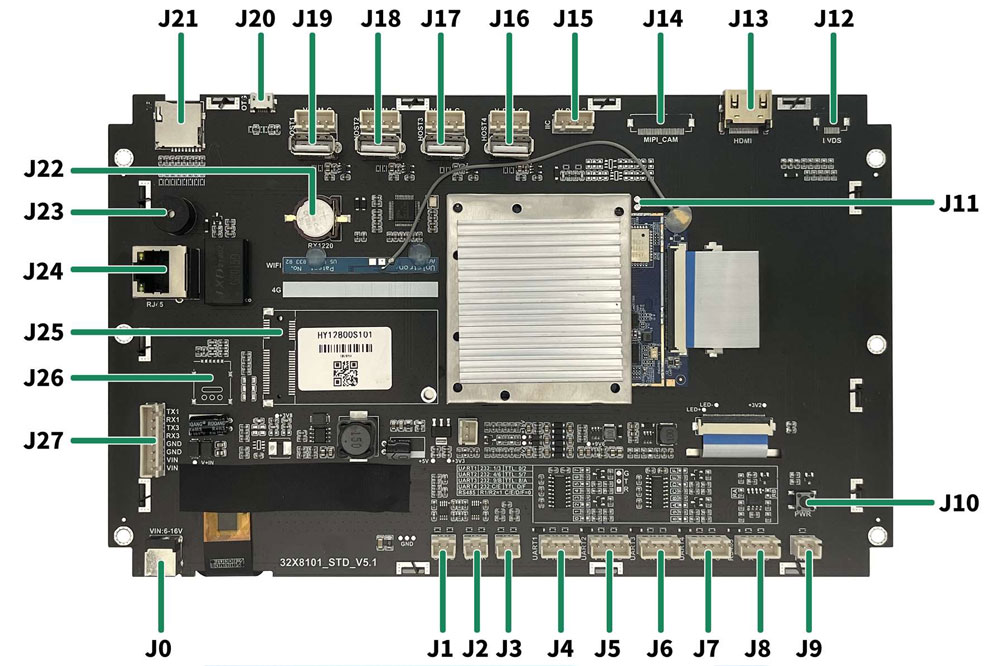

Interface Description of 10.1 Inch 1280*800 Android LCM




Num. Interface Name Description
J0 Power 12V3A power supply
J1 SPK_R Right channel audio output interface
J2 SPK_L Left channel audio output interface
J3 MIC Audio input interface
J4 UART1 Device name: ttyS1. Pin definition: 5V, RX, TX, GND
J5 UART2 Device name: ttyS2. Pin definition: 5V, RX, TX, GND
J6 UART3 Device name: ttyS3. Pin definition: 5V, RX, TX, GND
J7 UART4 Device name: ttyS4. Pin definition: 5V, RX, TX, GND/Same as J8
J8 RS485 Pin definition: 5V, A, B, GND
J9 Wake-up Control screen system on/off
J10 Wake-up Control screen system on/off
J11 Recovery Short-circuit to enter firmware burning mode
J12 Reserved interface Reserved
J13 HDMI HDMI output interface
J14 Reserved interface Reserved
J15 IIC communication Pin definition: 5V, SDA, SCL, GND (Reserved)
J16 USB_HOST4 Horizontal USB2.0 (Vertical 4P2.54mm). Support USB Peripherals
J17 USB_HOST3 Horizontal USB2.0 (Vertical 4P2.54mm). Support USB Peripherals
J18 USB_HOST2 Horizontal USB2.0 (Vertical 4P2.54mm). Support USB Peripherals
J19 USB_HOST1 Horizontal USB2.0 (Vertical 4P2.54mm). Support USB Peripherals
J20 USB_Micro OTG /App debugging/ Firmware upgrade interface
J21 TF Card TF Card
J22 RTC Supply system RTC
J23 Buzzer Buzzer
J24 RJ45 interface Support 10M/100M/1000M network
J25 MINI PCIE 4G 4G LTE Module/GPS (Optional)
J26 SIM card Nano-SIM supported (Optional)
J27 User interface Pin Definition: TX1, RX1, TX3, RX3, GND, GND, VIN, VIN
